Repeat Number
The number of repetition of Band.
When binding data band or group header band, you do not need to specify the number of times, but for binding dummy bands, the Repeat number property need to be set a value greater than 0.
In the data band, data expander band, and group header band, if Repeat Number is set to a value less than the number of data, the number of data is bound. If you Set to a value greater than the number of data, it will be bind as an empty label the remaining number of times.
However, if only a crosstab, table, or gantt chart is added without labels or charts to the data band, data expander band, and group header band, one component displays all data due to the nature of the component, so it binding only once regardless of Repeat Number.

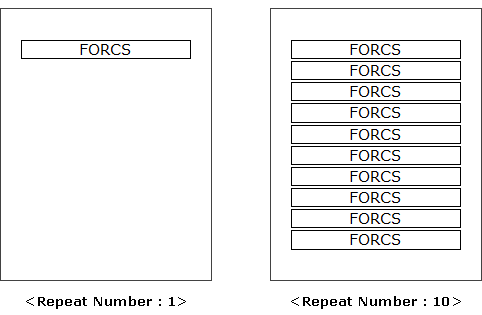

Example: If you set Repeat Number of dummy band
Binding by repeating the same content as the number of repetition.

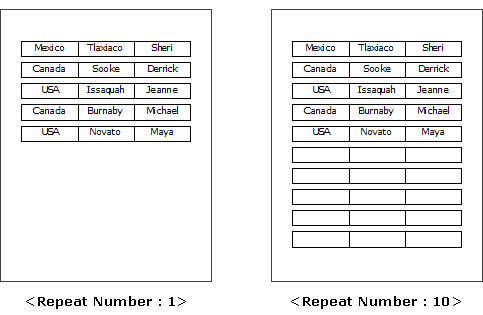

Example: If the number of data is 5, and set Repeat Number of data band that the data labels were added
If the number of repetition is set to a value less than the number of data, the number of data is bound. If you Set to a value greater than the number of data, it will be bind as an empty label the remaining number(five times) of times.

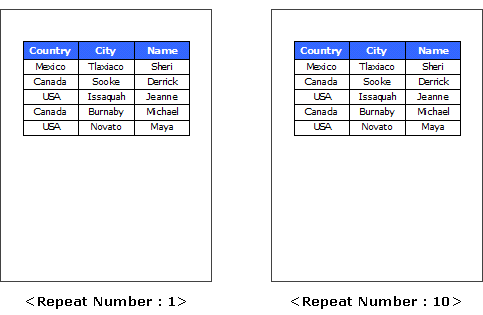

Example: If the number of data is 5, and set Repeat Number of data band that the data tables were added
If only a table is added to the data band, one table displays all data, so it binding only once regardless of Repeat Number.
