Gauge

---

Sets options of gauge chart.

Start Angle

Sets the starting angle of the Axis.

Sweep Angle

Sets the angle size of the gauge chart.

Axis Thickness

Sets thickness of the Axis which is displayed in Y-Axis.

Bar Thickness

Sets the bar thickness of gauge charts.

Legend Label Pos

When select the Show Label option in X-Axis, sets location of the displayed series data caption.

Data Label Position

Sets locations of labels which display data values. If you set this to Auto, it will be applied unconditionally out of the Axis.

Axis Label

Sets location of the Y-Axis label. If you set this to Auto, it will be applied unconditionally out of the Axis.

Bar Position

Sets how long gauge bars to be drawn in terms of their position within the Axis.

Chart Arrange

Sets arrangement type of the chart.

Reverse

Sets whether to draw data clockwise or counter clockwise direction.

---

Example - Origin, Start Angle, Sweep Angle, Reverse

Apply case below was set Start Angle to 30 and  Sweep Angle to 180.

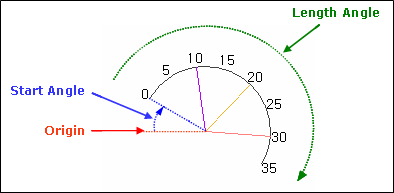

If you have not checked Reverse

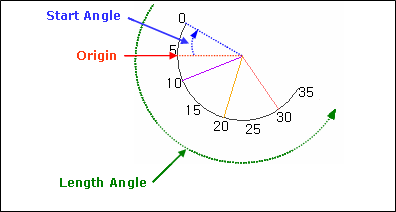

If you check Reverse

Example - Start Angle, Reverse

Apply case below was set Sweep Angle to 180, Axis Thickness to 40 in the Gauge tab and set Axis color in the Y-Axis tab.

If Reverse is not checked

If Reverse is checked

Example - Chart Arrange

Normal

Horizontal

Vertical
