Legend
Sets legend options.
Show
Determines whether or not to display the legend.
Title
Sets the Title to be displayed for the legend.
Border
Determines whether or not to display border line and border background color.
Descending
Sets to sort data within the legend in descending order.
Gap from chart to legend
Sets the gap from the chart to the legend.
Use Symbol Width
When display the icon of the legend or graph mark, determines whether or not to set the symbol width.
Fit Legend Label Width
Determines whether or not to sort the label according to the maximum width of the legend label.
Location
Sets location of the legend.
Example - By Series
When the values displayed on the legend label are in the order of "Mexico, Canada, USA, Korea", the item order set in the "Select from series" dialog box determines whether to or not display the legend label for each item.
If you set Selected Item "Invisible" only
If only "Invisible" is set to the selected item, only the first displayed legend label is hidden, and the remaining labels will be displayed. In other words, only Mexico will be invisible and the rest of Canada, USA, and Korea will be displayed.

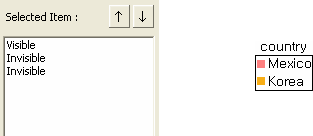

If you set Selected Item "Visible, Invisible, Invisible" in order
If the selected item is set to in the order of "Visible, Invisible, Invisible", the first legend will be displayed, the second and third legends will not be displayed, and the remaining labels will be displayed. In other words, Canada and USA will be invisible and Mexico and Korea will be displayed.
Example - Descending option
If the values of the data displayed on the legend are in the order of "Mexico, Canada, USA, Korea", depending on whether the "Descending" option is checked or not, the order will be applied differently.
If you have not checked Descending
Data in the order from top to bottom direction, or from left to right in the direction of lists.
If you check the descending
Data in the order from bottom to top direction or from right to left in the direction of lists.
Example - Fit Legend Label Width option
If the values of the data displayed on the legend are "Oakland, Seattle, Woodland Hills, Richmond", depending on whether the "Fit Legend Label Width" option is checked or not, the width of the legend label will be applied differently.
If you have not checked Fit Legend Label Width
The width will be automatically adjusted to fit the number of characters in each data.
If you check Fit Legend Label Width
The width of the other labels will be set equal to the width of the label with the most character data(Woodland Hills).
