Pie

---

Sets options of pie chart.

Start Angle

Sets the starting angle of the Axis. Always starts from the origin and rotates clockwise.

Length Angle

Sets the angle size of the pie chart.

Axis Thickness

Sets the thickness of the Axis which makes a circle gap that is excluded from the pie chart. Setting thickness of the Axis allows creating a chart in donut shape.

XY Ratio

Sets the ratio of width and height of the pie chart. Default value is 100, and it can be set from 10 to 1000.

Split Percent

Sets split percent of divided pie charts.

Legend Lable Pos

Sets up position for legend label.

Data Label Position

Sets location of data labels. If you set it to Auto, the text will be displayed on the sides automatically if the space is not enough.

Axis Label

When the Show Label option is selected for Z-Axis, this option sets the location of the Z-Axis label(series) caption. If you set it to Auto, the text will be displayed on the sides automatically if the space is not enough.

Chart Arrange

Sets how the charts within the chart area should be arranged.

Reverse

Sets whether to draw the data clockwise or counter-clockwise direction. If this option is selected, the position of each data in the chart will be different from that of when it is not selected.

---

Example - Origin, Start Angle, Length Angle, Reverse

Apply case below was set Start Angle to 90 and  Length Angle to 270.

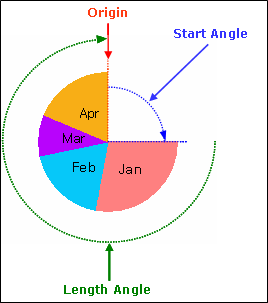

If you have not checked Reverse

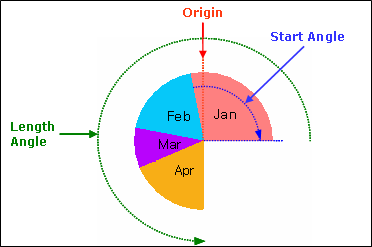

If you check Reverse

Example - Chart Arrange

Normal

Horizontal

Vertical
