Z-Axis - Advanced
Sets the advanced options for Z-Axis in the Advanced dialog by clicking the [Advanced] button in the [Z Axis] tab.
Major Gridlines, Minor Gridlines
Sets the position, length of Major/Minor gridlines.
If there are multiple fields assigned for the series, all field values are displayed on the Z-Axis label in tree format.
Series In
When there are several fields in data value of the Y-Axis, this chooses the priority between the Y-Axis data value and series.
Series - If there are two or more fields in Y-Axis and more than one series fields existing, this will set the Y-Axis field to higher legend(series).
Value - If there are two or more fields in Y-Axis and more than one series fields existing, this will set the series field to higher legend(series).
Label Inclined
Sets whether or not to display the Z-Axis label at a -45 degree angle.
If the option is checked, the following restrictions apply.
•The text direction is ignored, and the text is displayed in a single line. The newline charac X-axis, left Y-axis, right Y-axis, series, and label.ter is converted to a space character.
•When the report is exported to the PDF or SVG files, the labels will not be exported. But the "Save chart to image" option in the PDF save option dialogue is checked, chart labels are exported.
•If the X-Axis and Z-Axis is reversed, the Z-Axis will be displayed at a 45 degree angle.
Example - Series In

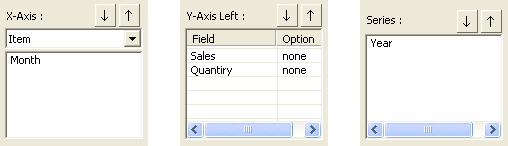

For example, if the X-Axis, left Y-Axis, and series are set as shown in the figure below, depending on the option, the series is configured differently.

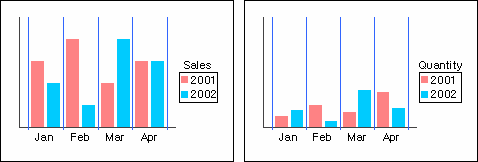

If you select Series
Display the series based on the Year value of the series field.

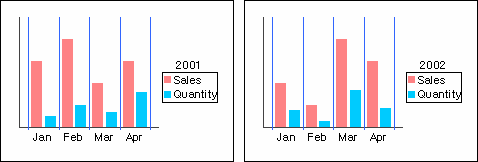

If you select Value
Display the series based on the value fields which are the Y-Axis fields, Sales and Quantity.
